PLUGY HP system... make it easy!

PLUGY HP GATE DRIVER MODULE

PEM.HP.GD.01.B.S.XXXX

PLUGY HP Gate Drive

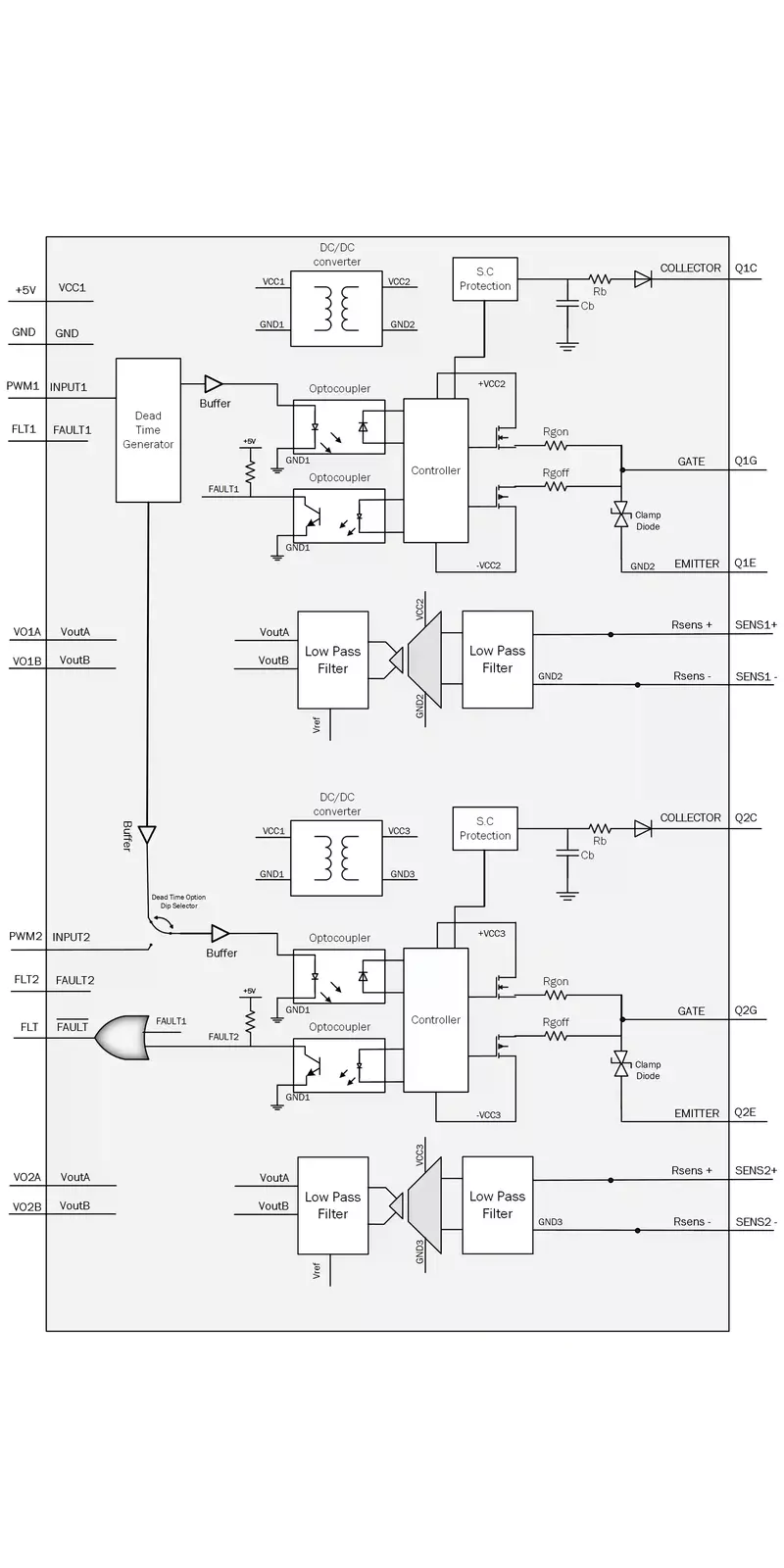

PLUGY HP Gate Drive diagram

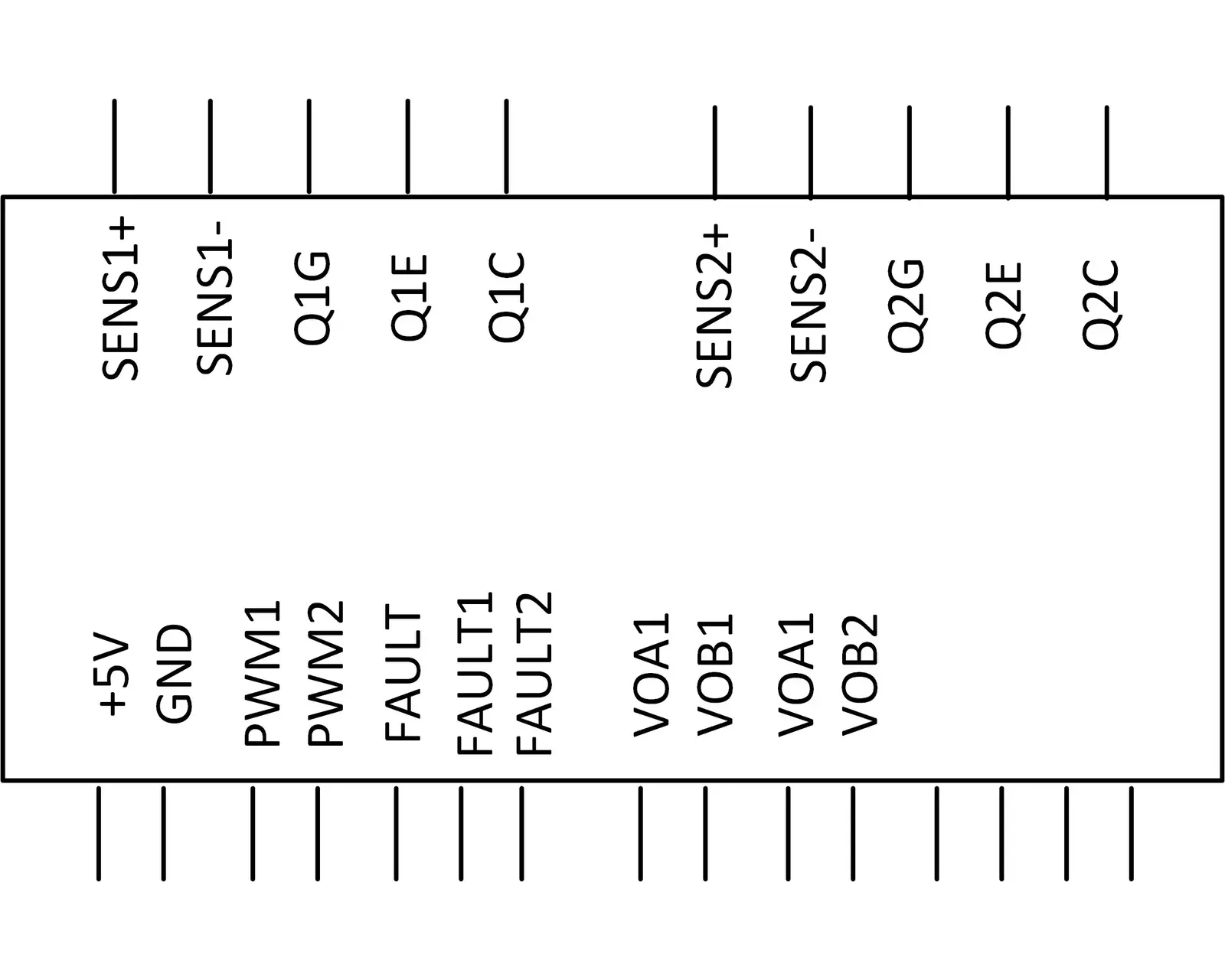

PLUGY HP Gate Drive Symbol
For Inquiry
Description:
High-performance Half-Bridge SiC MOSFET/ IGBT/ MOSFET Gate Driver with short-circuit protection and high Common- Mode Transient Immunity (CMTI)  for  fast switching high voltage applications including opto-isolated analog measurement .

Features:
  • High Isolation voltage up-to 3KV.
  • High Common-Mode Transient Immunity (CMTI) up to 100KV/usec.
  • Optional fault indicator in case of SiC-MOSFET/IGBT short circuit or Gate Drive Supply under voltage.
  • Including optional Dead-time between bridge switches.
  • Active miller clamping protection for turn-on and turn-off.
  • Test Points for SiC-MOSFET/IGBT terminals for easy voltage monitoring.
  • Turn-on and Turn-off Gate resistor control.
  • Multiple Output voltage for different switches compatibility.
Analog Measurement Opto-Isolation Main Features:
•±200-mV linear input range.
•DC or AC wave forms.
•50KHz bandwidth.
•Excellent linearity of 0.5%.
•High gain accuracy of 1%.
•High temperature stability 50ppm/C.
•No need for external reference.
•Differential output signal for high noise immunity

Gate Drive Specifications

  Parameter Symbol Min Typmax Unit
 Input Supply Voltage  VCC1 +4.5 +5 +5.5V 
 Input Supply Current  ICC1 150 - 300m A
Input signal High level VinHL 2 - 5 V
 Isolation Voltage Viso - - 3000 V
Switching Frequency Fsw - - 50KHz
 Propagation Delay Time tPLH 75 -110 ns
Propagation Delay Time tPHL 75 -110 ns
 DESAT Sense to 90% VOUT Delay tDESAT - 553760 ns 

Gate Driver Model 1508

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 14.5 15 15.5V 
Turn off output voltageVgoff- -8 -V

Gate Driver Model 1505

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 14.5 15 15.5V 
Turn off output voltageVgoff- -5 -V

Gate Driver Model 1500

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 14.5 15 15.5V 
Turn off output voltageVgoff-0 -V


PEM.HP.GD.01.B.XXXX

PLUGY HP Gate Drive
PLUGY HP Gate Drive diagram
PLUGY HP Gate Drive Symbol
For Inquiry
Description:
High-performance Half-Bridge SiC MOSFET/ IGBT/ MOSFET Gate Driver with short-circuit protection and high Common- Mode Transient Immunity (CMTI)  for  fast switching high voltage

Features:
  • High Isolation voltage up-to 3KV.
  • High Common-Mode Transient Immunity (CMTI) up to 100KV/usec.
  • Optional fault indicator in case of SiC-MOSFET/IGBT short circuit or Gate Drive Supply under voltage.
  • Including optional Dead-time between bridge switches.
  • Active miller clamping protection for turn-on and turn-off.
  • Test Points for SiC-MOSFET/IGBT terminals for easy voltage monitoring.
  • Turn-on and Turn-off Gate resistor control.
  • Multiple Output voltage for different switches compatibility.

Gate Drive Specifications

  Parameter Symbol Min Typmax Unit
 Input Supply Voltage  VCC1 +4.5 +5 +5.5V 
 Input Supply Current  ICC1 150 - 300m A
Input signal High level VinHL 2 - 5 V
 Isolation Voltage Viso - - 3000 V
Switching Frequency Fsw - - 50KHz
 Propagation Delay Time tPLH 75 -110 ns
Propagation Delay Time tPHL 75 -110 ns
 DESAT Sense to 90% VOUT Delay tDESAT - 553760 ns 

Gate Driver Model 1508

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 14.5 15 15.5V 
Turn off output voltageVgoff- -8 -V

Gate Driver Model 1505

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 14.5 15 15.5V 
Turn off output voltageVgoff- -5 -V

Gate Driver Model 1500

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 14.5 15 15.5V 
Turn off output voltageVgoff-0 -V


PEM.HP.GD.02.B.S.XXXX

PLUGY HP Gate Drive
PLUGY HP Gate Drive diagram
PLUGY HP Gate Drive Symbol
For Inquiry
Description:
High-performance Half-Bridge SiC MOSFET/ IGBT/ MOSFET Gate Driver with short-circuit protection and high Common- Mode Transient Immunity (CMTI)  for  fast switching high voltage applications including opto-isolated analog measurement .

Features:
  • High Isolation voltage up-to 5KV.
  • High Common-Mode Transient Immunity (CMTI) up to 100KV/usec.
  • Optional fault indicator in case of SiC-MOSFET/IGBT short circuit or Gate Drive Supply under voltage.
  • Including optional Dead-time between bridge switches.
  • Active miller clamping protection for turn-on and turn-off.
  • Test Points for SiC-MOSFET/IGBT terminals for easy voltage monitoring.
  • Turn-on and Turn-off Gate resistor control.
  • Multiple Output voltage for different switches compatibility.
Analog Measurement Opto-Isolation Main Features:
•±200-mV linear input range.
•DC or AC wave forms.
•50KHz bandwidth.
•Excellent linearity of 0.5%.
•High gain accuracy of 1%.
•High temperature stability 50ppm/C.
•No need for external reference.
•Differential output signal for high noise immunity

Gate Drive Specifications

  Parameter Symbol Min Typmax Unit
 Input Supply Voltage  VCC1 +4.5 +5 +5.5V 
 Input Supply Current  ICC1 300 -600m A
Input signal High level VinHL 2 - 5 V
 Isolation Voltage Viso - -5000 V
Switching Frequency Fsw - -200KHz
 Propagation Delay Time tPLH 75 -110 ns
Propagation Delay Time tPHL 75 -110 ns
 DESAT Sense to 90% VOUT Delay tDESAT - 553760 ns 

Gate Driver Model 1508

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon19.5 20 20.5V 
Turn off output voltageVgoff- -8 -V

Gate Driver Model 1505

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 19.5 20 20.5V 
Turn off output voltageVgoff- -5 -V

Gate Driver Model 1500

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 19.520 20.5V 
Turn off output voltageVgoff-0 -V


PEM.HP.GD.02.B.XXXX

PLUGY HP Gate Drive
PLUGY HP Gate Drive diagram
PLUGY HP Gate Drive Symbol
For Inquiry
Description:
High-performance Half-Bridge SiC MOSFET/ IGBT/ MOSFET Gate Driver with short-circuit protection and high Common- Mode Transient Immunity (CMTI)  for  fast switching high voltage applications including opto-isolated analog measurement .

Features:
  • High Isolation voltage up-to 5KV.
  • High Common-Mode Transient Immunity (CMTI) up to 100KV/usec.
  • Optional fault indicator in case of SiC-MOSFET/IGBT short circuit or Gate Drive Supply under voltage.
  • Including optional Dead-time between bridge switches.
  • Active miller clamping protection for turn-on and turn-off.
  • Test Points for SiC-MOSFET/IGBT terminals for easy voltage monitoring.
  • Turn-on and Turn-off Gate resistor control.
  • Multiple Output voltage for different switches compatibility.

Gate Drive Specifications

  Parameter Symbol Min Typmax Unit
 Input Supply Voltage  VCC1 +4.5 +5 +5.5V 
 Input Supply Current  ICC1 300 -600m A
Input signal High level VinHL 2 - 5 V
 Isolation Voltage Viso - -5000 V
Switching Frequency Fsw - -200KHz
 Propagation Delay Time tPLH 75 -110 ns
Propagation Delay Time tPHL 75 -110 ns
 DESAT Sense to 90% VOUT Delay tDESAT - 553760 ns 

Gate Driver Model 1508

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon19.5 20 20.5V 
Turn off output voltageVgoff- -8 -V

Gate Driver Model 1505

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 19.5 20 20.5V 
Turn off output voltageVgoff- -5 -V

Gate Driver Model 1500

  Parameter Symbol Min Typmax Unit
Turn on output voltageVgon 19.520 20.5V 
Turn off output voltageVgoff-0 -V
